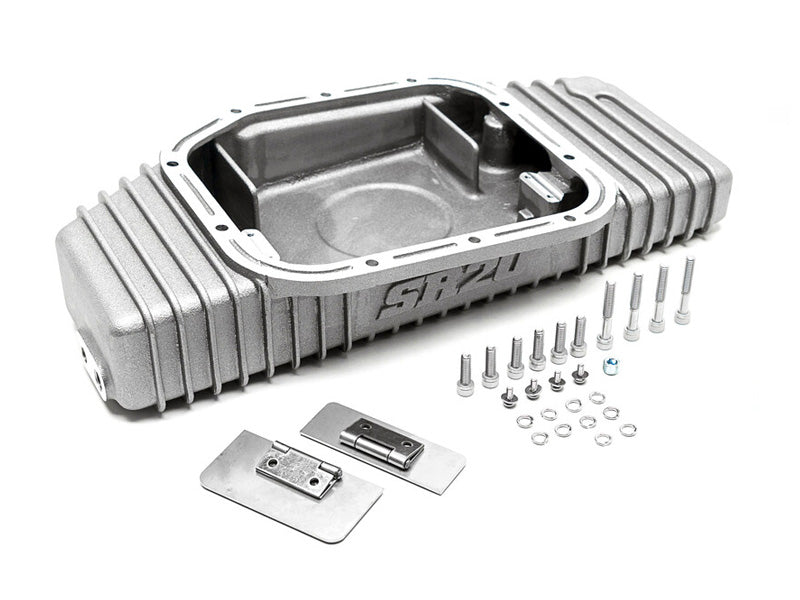

GReddy High Capacity Baffled Oil Pan - Nissan SR20DET

GReddy High Capacity Baffled Oil Pan - Nissan SR20DET

- Increases oil capacity by approximately 1.0L (+1000cc)

- Cast aluminium construction with high-quality finish

- Internal swing baffles help prevent oil surge

- Improves oil cooling efficiency and temperature stability

- Maintains consistent oil pressure during hard cornering, acceleration, and braking

- Includes 1/8 BSP (JDM 1/8PT) sensor port with plug

- Retains factory ground clearance

- Direct "plug & play" installation with no modifications required

- Made in Japan

- GReddy part no: 13525901

The GReddy High Capacity Oil Pan is designed to improve both engine protection and oil temperature control in performance-oriented SR20-powered vehicles. Featuring an increased capacity of approximately 1.0 litre over the factory oil pan, it allows the engine oil to spend more time outside the lubrication circuit, helping dissipate heat more effectively and maintain more stable operating temperatures.

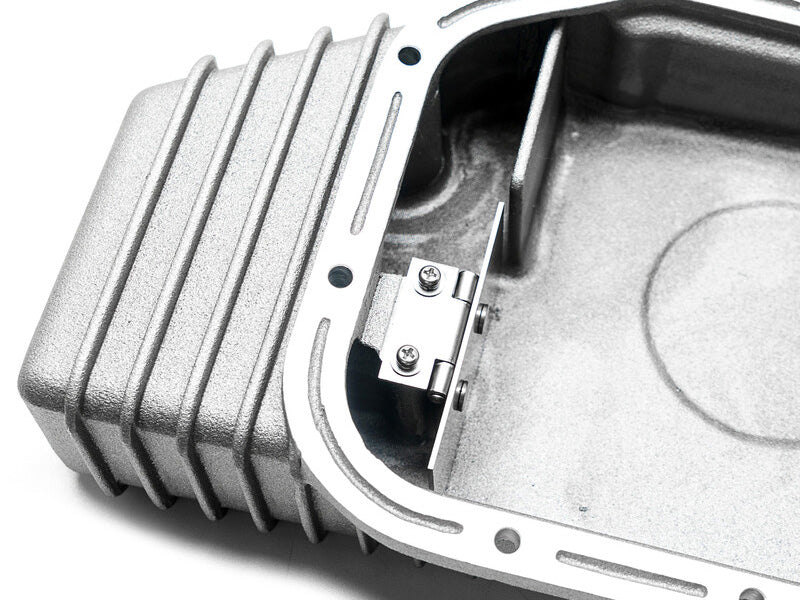

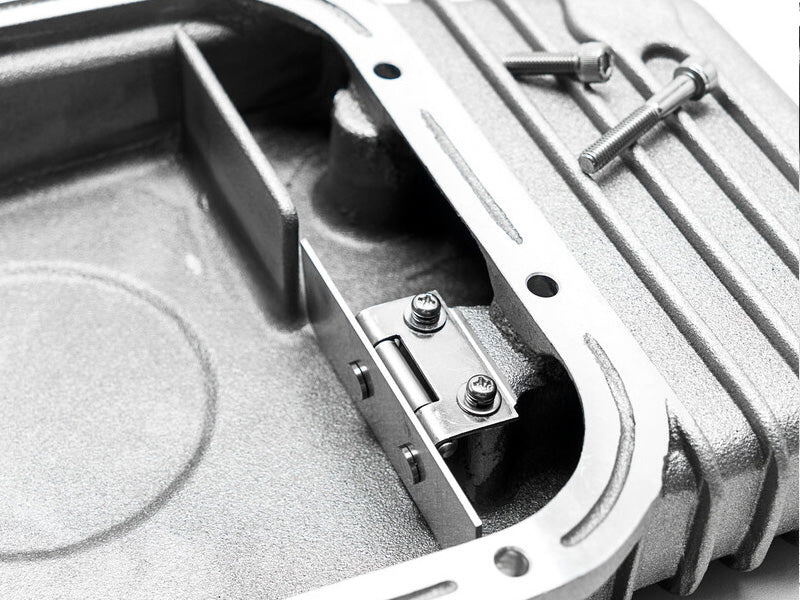

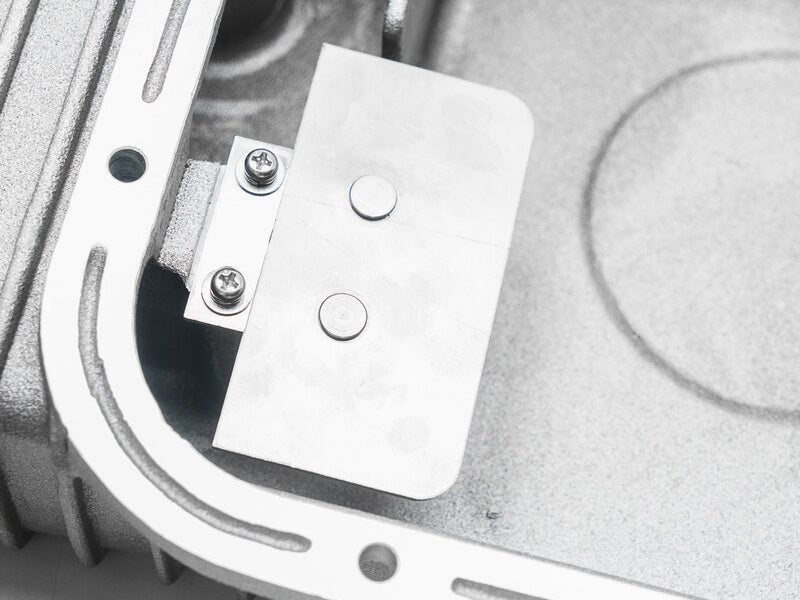

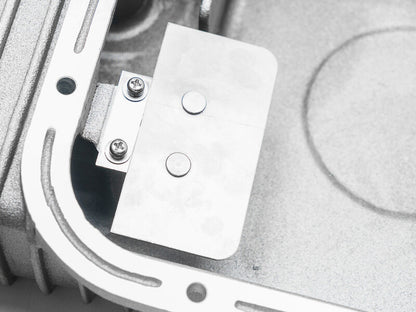

To ensure reliable lubrication during demanding driving conditions, the pan incorporates GReddy's specially designed internal swing baffle system. These baffles keep oil concentrated around the oil pump pickup, reducing the risk of oil starvation caused by high G-forces during cornering, acceleration, and braking. This helps maintain consistent oil pressure and protects the engine during track days, drifting, and competitive motorsport use.

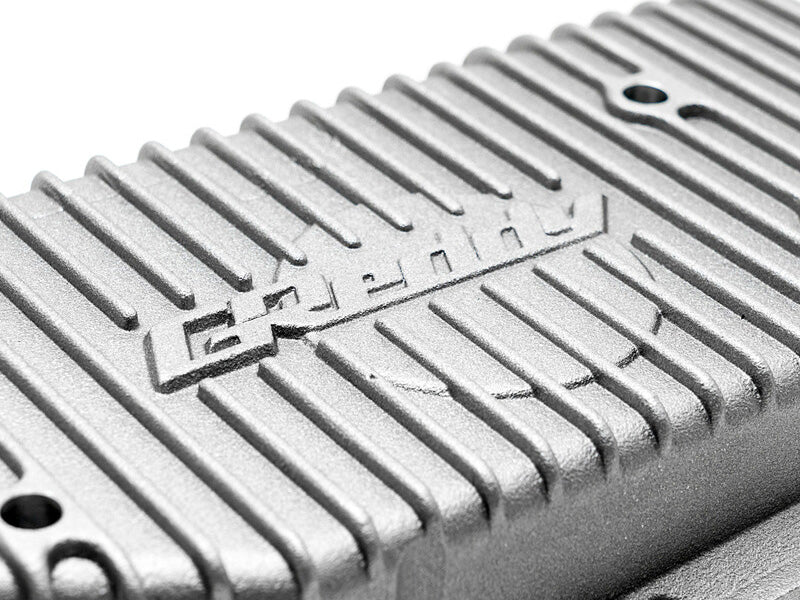

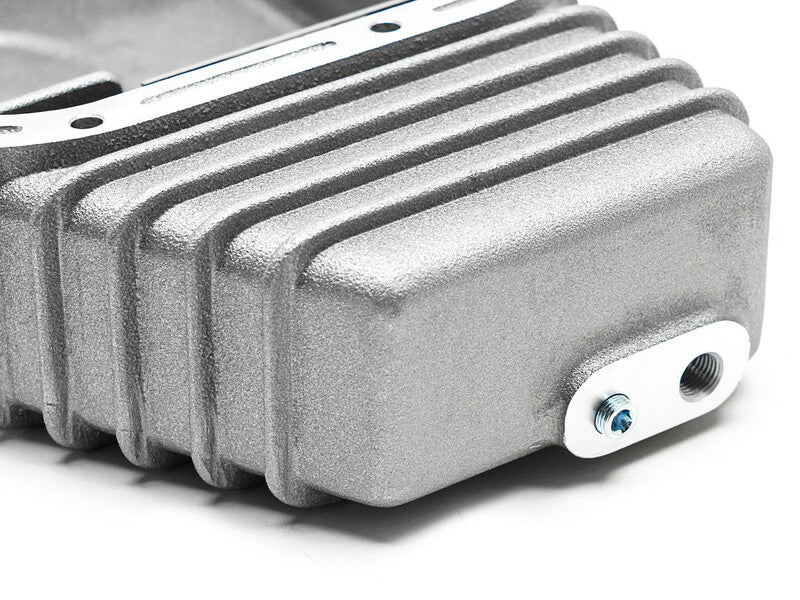

Manufactured in Japan from thick-wall cast aluminium, the GReddy oil pan combines excellent heat dissipation with outstanding durability. Its precision-cast design offers a perfect fit while retaining factory ground clearance and allowing installation without engine removal. An integrated 1/8 BSP sensor port also makes it easy to add an oil temperature or pressure sensor for additional engine monitoring.
