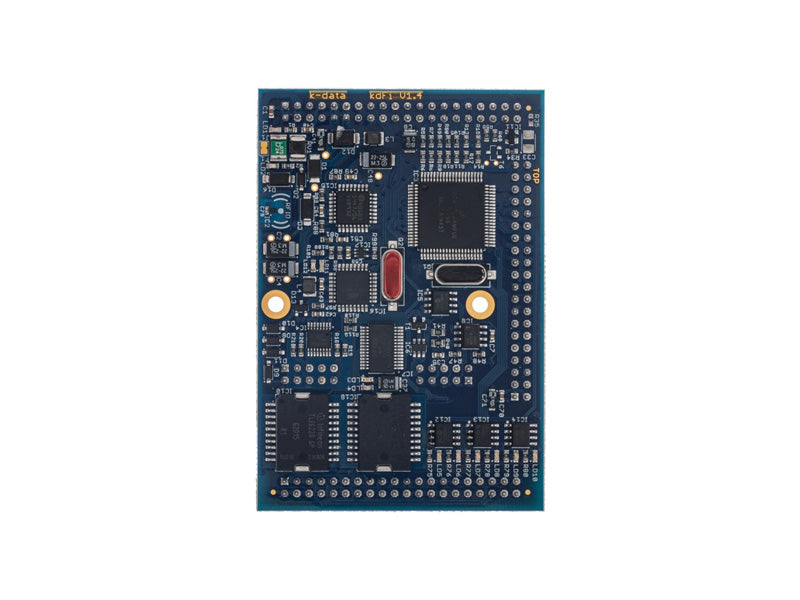

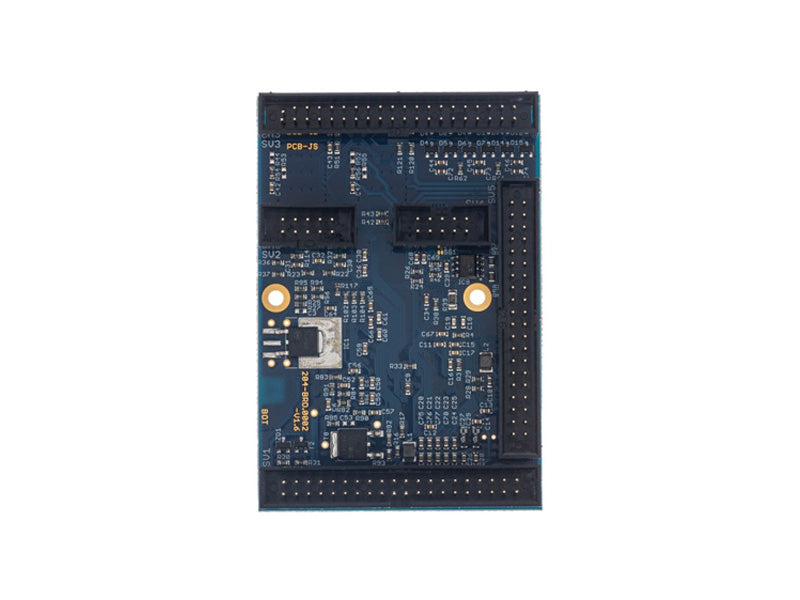

K-DATA kdFi V1.4 Modul

K-DATA kdFi V1.4 Modul

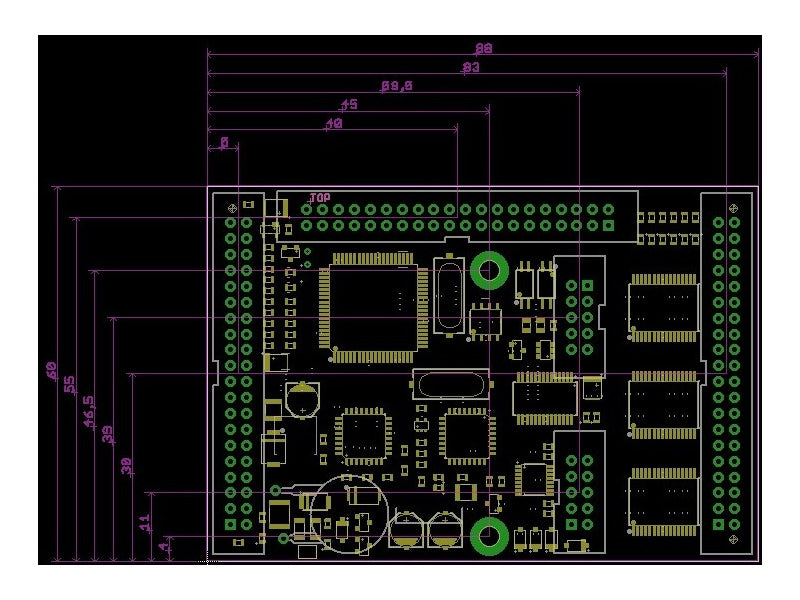

- Dimensions 60mm x 88mm
- No heat sink needed
- Designed as Daughterboard (Eagle library will be published for own projects)
- Layouted by a specialized company
- DC isolated USB connection (Bluetooth Option)
- Two seperate self adjusting inputs for crank and cam sensors (Hall or VR)
- 4 seperate overcurrent protected injectors outputs (4 more outputs at moment parallel - single usable with changed firmware )
- 6 single ignition outputs with hardware over dwell protection (no need to disconnect during firmwareupdate)
- 6 more outputs parallel for engines up to V12 in wasted spark
- Integrated Widebandlambdacontroler from www.Breitband-Lambda.de
- Lots of spare portpins for own software changes

- K-DATA part no. 3320
